2PBA have the following advantages;


Compact Design, Economical Conception, High Rotating Speeds, High Output Pressure, Reduced Noise Level, Smaller Installation Dimensions, One Piece Pistons with Piston Rings, Special Suction Fittings & Accesories, Simple Change of Direction of Rotation..

2PBA Bent Axis Pumps starting at ;  5cc, 12cc, 18cc, 25cc, 32cc, 40cc, 50cc, 56cc, 63cc, 80cc, 108 cc and 130cc.

2PBA Pumps have Special and Classic Versions. More details available at 2PBA Official Catalog.



Other Advantages of 2PBA


New frame sizes to meet market requirements.

Optional by-pass valve.

For use in mobile & industrial and stationary applications areas.

The pump drive shaft bearings are designed to give the service life expected in these areas of operation.

Interchangeable with other bent axis pumps.

8x32x36 Splined Shaft, DIN ISO 14NF



Why Bent Axis ?


40 degree bent axis design giving high power, small overall dimensions, optimum efficiency and economic design.

Flange and shaft designed for direct mounting on truck gearbox PTO's. The fixed displacement bent axis pumps generates a hydraulic fluid flow.

It is designed for use in trucks, commercial vehicles and all stationary hydraulic applications. The 2PBA is a fixed pump with rotary group in bent-axis design open circuits.



Flow, Efficiency, Performance


Flow is proportional to drive speed and displacement.

For axial piston units with bent-axis design, the Pistons are arranged diagonally with respect to the drive shaft. The pump covers the whole displacement range 5 to 130 cm3/rev.

The pump has been developed with modern styling and design to satisfy market demand as to designed new generation plate and pistons
with give high flow performance, high pressures with high efficiency and very small dimensions.



Pressure, Speed and Flow list of 2PBA


The pump is available both to DIN and SAE world standards and can be mounted either directly at the gear box or via a drive shaft.

If necessary it can also be augmented with a by-pass valve.Other brand bent axis pumps compatible and interchangeable with 2PBA bent axis pumps.

Refer to the data sheet and order confirmation for the technical data,operating conditions and operating limits of the bent axis piston pumps.

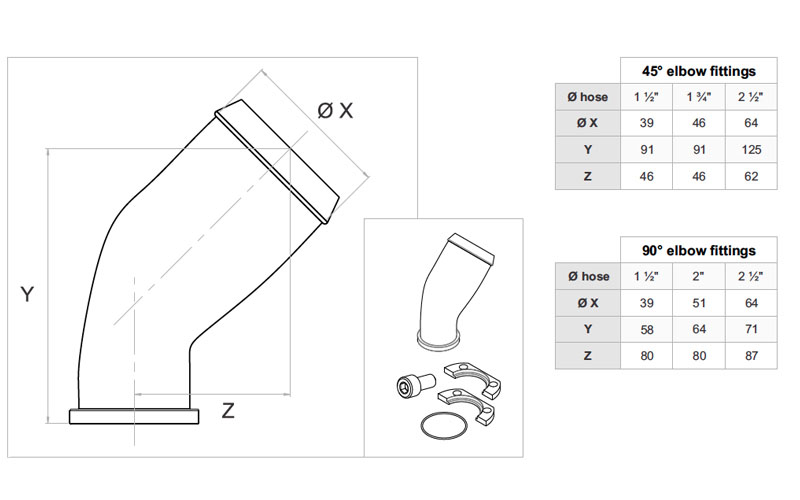

Fittings



Show Subsection
