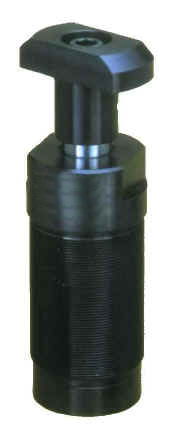

This cylinder provides a large clamping force and a smaller occupied space.
This high oil pressure swing cylinder includes single-acting and double-acting type wherein the clamping force of the single-acting type is smaller than that of the double-acting type and must deduct the restoring spring force.
This cylinder operated mainly in a downward pressing manner (pull cylinder type), including clockwise swing and counterclockwise swing.
Standard swing angle is 90 degree, and optional swing angles include 0, 45 and 60 degree.
Clamping means includes single arm or double arms.
The mounting manner includes square base type, threaded type and flange type for manifold mounting with O-ring seal.
This threaded-body clamping cylinder is applied to a condition of knocking-out, and provides a clamping force on a workpiece within a stroke in order to secure the workpiece.
The threaded-body cylinder series include knocking-out heads without female thread (A series) and knocking-outs heads with female thread (B series).
This support is used for avoiding deformation of workpieces and decreasing vibration of workpieces during machining.
A-type: knocking-out with a spring; the spring is used to control a contact force when the piston rod extends to a highest knocking-out position and contacts the workpiece.
B-type: knocking-out with oil pressure; when the piston rod is at a lowest position, it is operated by means of oil pressure and is knocked out when being filled with oil and uses a spring to control the contact force contacting with the workpiece.
The mounting manner includes square base type and threaded type.
